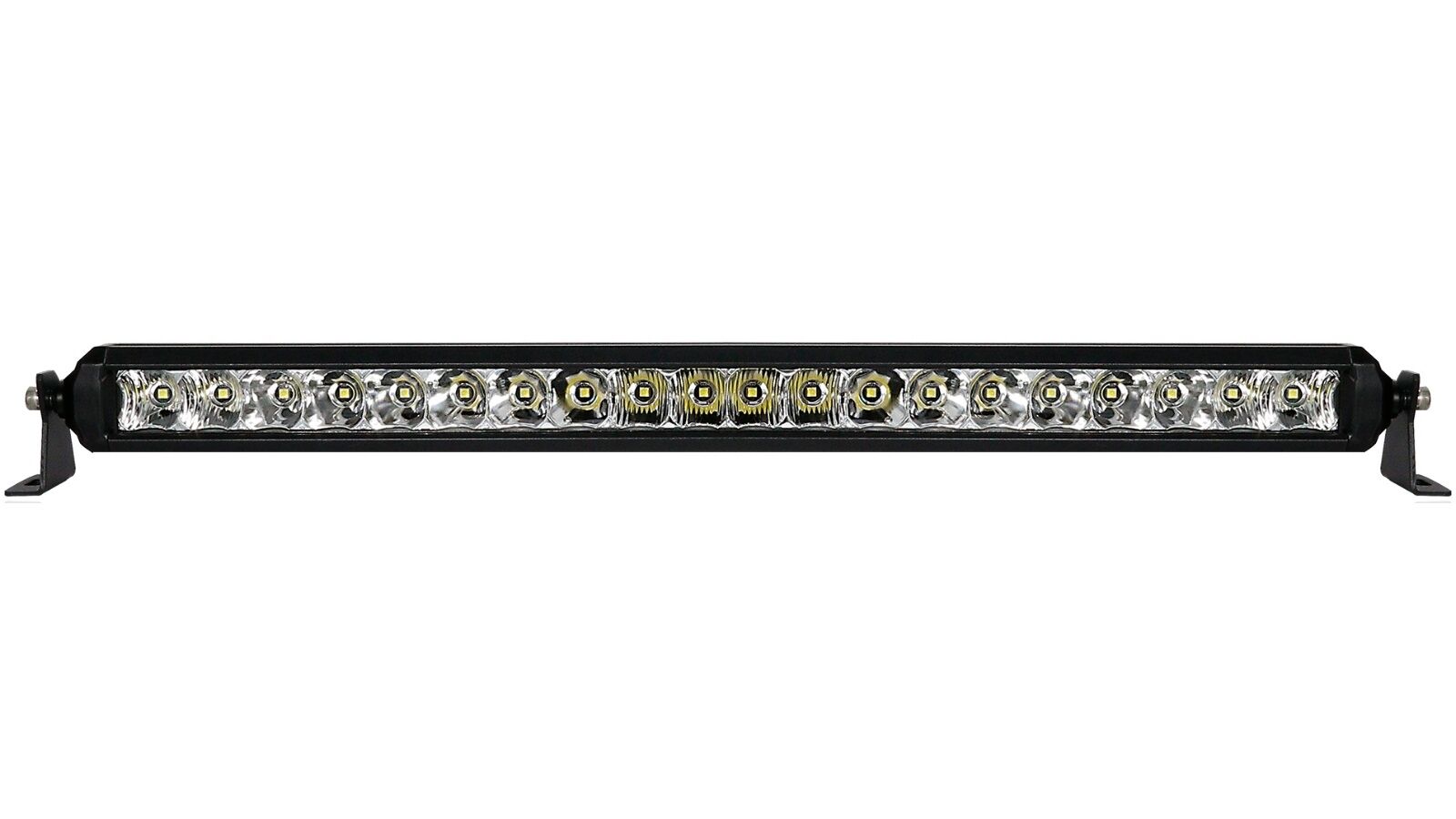

Perception Lighting SRX Series 20.5" LED Single Row Osram LED Lightbar
More infoBuy Now, Pay Later.
DETAILS
Introducing our all new SRX SERIES 20.5 Inch LED Light Bar.
Our 20.5 Inch model is equipped with 20 of OSRAMs superior DURIS LEDs and a combination of precision engineered spot & flood reflectors. This produces an exceptional beam spread beam out at 50 and spot beam at 5 all the way to whopping 1 lux @ 490m
Our SRX range has been designed with a low profile to allow for fitment in tight places but still require exceptional performance.
The SRX range feature our all new TruOptics beam pattern to focus the light where you need it most, resulting in a +65% increase in lux performance in comparison to the outgoing 10 Series LED bars.
.jpg)
INSTANT PERFORMANCE
The SRX-20 features 20 of OSRAMs superior DURIS LEDs, selected for their high output and matched optical geometry
The combination spot and flood reflector forms an astonishing beam that throwing beam wideout at 50 and spot beam punching all the way down to whopping 1 lux @ 490m
Pure White 5700K Colour temperature offers stunning clarity and definition and optimal Colour Rendering Index (CRI).
New circuit design allows 97% of input power to go directly to LEDs.
BUILT RUGGED
- Diecast aluminum faceplate, extruded Aluminum heat sink
- Dupont Powdercoat is UV and abrasion-resistant to ensure that our bars will never discolor.
- Gore Military breather protects against water & dust ingress
- LEXAN Lens is unbreakable and optically clear
- IP69K - Dust + high-pressure water-proof. No hassle car washing!
VERSATILE MOUNTING
- End mounts allow for 360 degrees of rotation.
- Slim profile allows fitment in low clearance applications.
CONTENTS
- 1 X 20.5 SRX Series Lightbar
- 2 x Side mount legs
- 1 x Male & female Deutsch connectors
OSRAM LED TECHNOLOGY
Perception SRX series lightbars utilize a 5-watt OSRAM Duris P8 LEDs. The result is amazing distance and flood performance. These high output
5 watt LEDs are not to be confused with competitors' inferior 3-watt counterparts.
THE PERCEPTION LIGHTING GUARANTEE
All Perception Lighting products are manufactured using the highest quality materials. We are so confident that we stand behind this product with a comprehensive 5 Year Australian Warranty.
SPECIFICATIONS
| LED POWER | 100W (20 x 5W) | |
| LED MANUFACTURER | Genuine OSRAM | |
| LUX | 1 LUX @ 490m | |
| BEAM DISTANCE | 0.25 LUX @ 980m | |
| BEAM PATTERN | Combination (Spot & Flood) | |
| OUTPUT | 12160 Lumens | |
| HOUSING MATERIAL | Diecast Aluminium | |
| LENS MATERIAL | GE Lexan Polycarbonate | |
| MOUNTING BRACKET | Side | |
| OPERATING VOLTAGE | 10-30V DC | |
| COLOUR TEMPERATURE | 5,700K | |
| LED LIFESPAN | 50,000 hours | |
| CERTIFICATIONS | CE, RoHS, C-Tick |
