12 Volt Direct MPPT Solar Regulator 100V 20A Pro Series w/ Bluetooth
DETAILS
Maximize Solar Efficiency With Cutting-Edge MPPT Technology!
The 12 Volt Direct MPPT Solar Regulator 100V 20A Pro Series w/ Bluetooth is a high-performance solar charge controller designed to maximize power efficiency in off-grid solar systems. With advanced Maximum Power Point Tracking (MPPT) technology, this regulator intelligently adjusts voltage and current levels to extract the highest possible energy from your solar panels, resulting in faster and more efficient battery charging.
Featuring a 100V input capacity and 20A output, this MPPT controller is perfect for RV solar systems, marine applications, off-grid cabins, and backup power solutions. Its Bluetooth connectivity allows seamless integration with a mobile app, giving users real-time access to system data, charging status, and performance optimizationall from their smartphone.
Designed with multi-stage charging algorithms, this unit extends battery lifespan and ensures stable power delivery to lithium, AGM, gel, and lead-acid batteries. Built-in safety features such as overvoltage, overcurrent, short-circuit, and overheating protection ensure reliable and secure operation. The rugged, weather-resistant construction makes it ideal for harsh outdoor environments.
Whether you're upgrading an existing solar setup or installing a new one, the 12 Volt Direct MPPT Solar Regulator 100V 20A Pro Series w/ Bluetooth is a smart, efficient, and durable choice for optimized solar energy management.
KEY FEATURES:
- Advanced MPPT Technology Increases energy conversion efficiency and maximizes power output.
- 100V Input & 20A Output Supports high-powered solar arrays for various applications.
- Bluetooth Connectivity Monitor and control your system remotely via a mobile app.
- Multi-Stage Charging Algorithm Optimizes battery performance and extends lifespan.
- Comprehensive Safety Protections Includes overcharge, short-circuit, overheating, and reverse polarity safeguards.
- Durable & Weatherproof Build Designed for reliable outdoor use in extreme conditions.
- User-Friendly LCD Display Provides real-time system diagnostics and performance data.
- Wide Battery Compatibility Works with lithium, AGM, gel, and lead-acid battery types.
SPECIFICATIONS:
- System Voltage: 12V/24V auto-select
- Rated Charging Current: 20A
- Max PV Open-Circuit Voltage: 100V (at 25C); 92V (at -25C)
- Max PV Input Power: 260W (12V) / 520W (24V)
- MPPT Efficiency: Up to 99.9%
- Conversion Efficiency: 98%
- Battery Compatibility: Sealed, gel, flooded, lithium
- Communication Ports: TTL, CAN (RV-C), optional Bluetooth

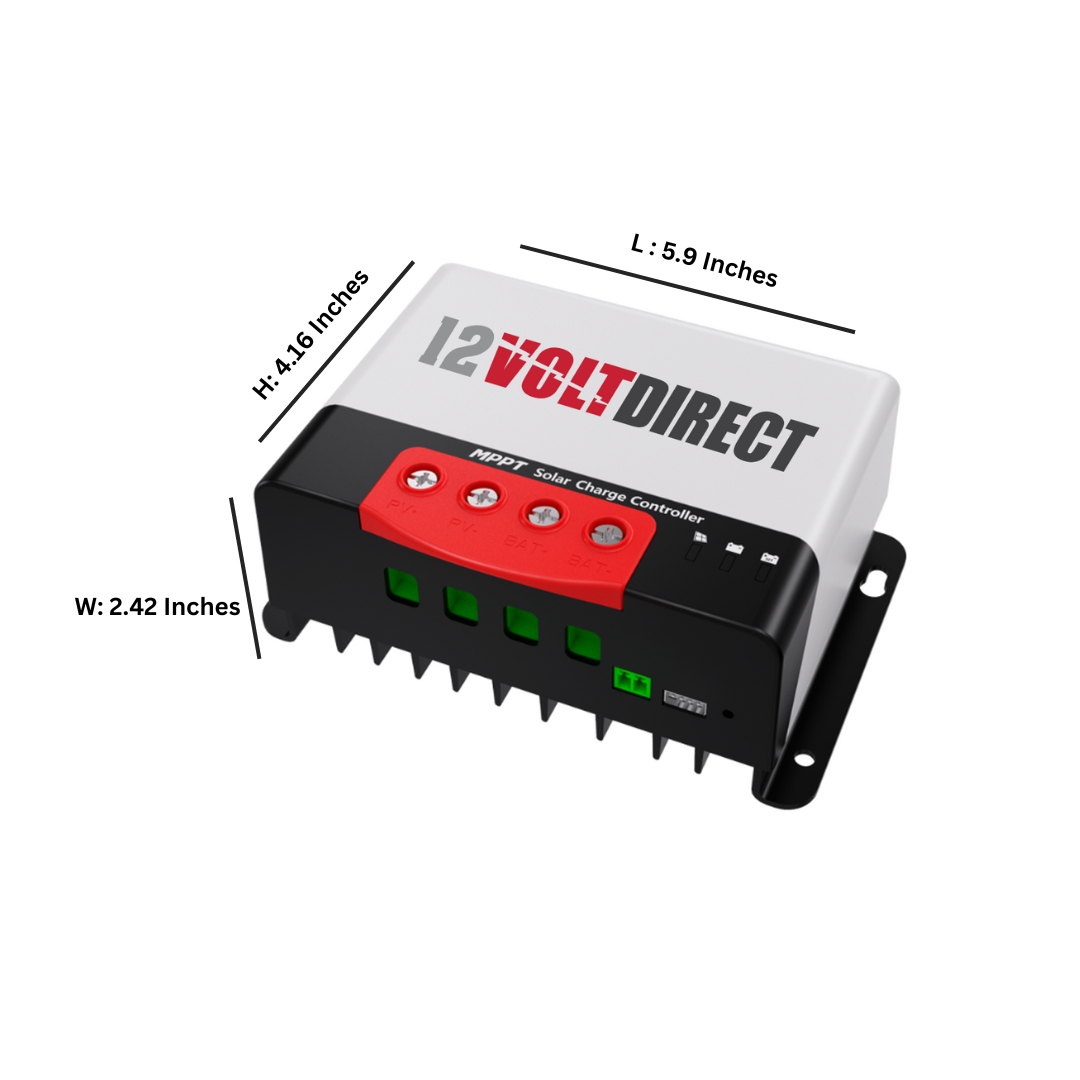

- Dimensions: 150 x 105.6 x 61.5 mm
- Weight: 0.65 kg
- Cooling: Natural air cooling
- Safety Features: Overcharge, short-circuit, overheating protection
